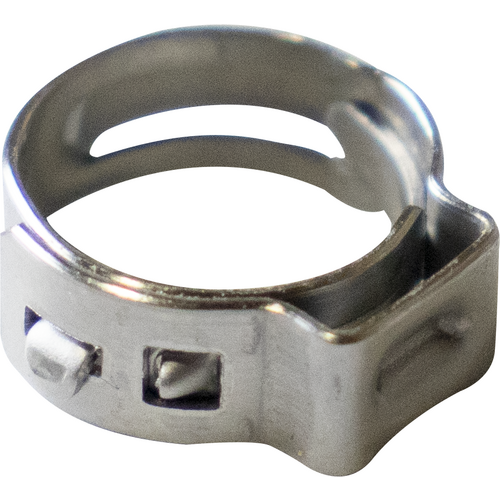

Stepless Hose Clamps – 20 Pack

Stepless Hose Clamps provide a secure, clean, and low-profile way to fasten brewing and draft tubing to barbed fittings. Their single-ear design applies even pressure around the circumference of the hose, helping create a tight connection without the bulky screw housing found on traditional worm-drive hose clamps.

Made from stainless steel and designed for installation with a Stepless Clamp Pincer Tool, these clamps are well suited for beer lines, gas lines, silicone tubing, transfer hoses, camlock assemblies, and other brewing or beverage connections. Each package contains 20 clamps and is available in two sizes based on the outside diameter of the tubing.

Available Sizes

Secure Hose Connections

Stepless clamps are designed to provide continuous pressure around the hose connection without the gaps or raised screw mechanism found on conventional worm-drive clamps. When properly sized and installed, the clamp conforms closely to the tubing and helps maintain an even seal around the fitting.

The compact design is especially useful in draft systems and brewing hose assemblies where space is limited or where a clean, professional connection is preferred.

Use & Applications

• Beer and beverage lines
• Gas tubing
• Silicone brewing hose
• Barbed fittings
• Camlock hose assemblies
• Quick-disconnect hose assemblies
• Transfer tubing
• Keg and draft system connections
• Brewing and beverage equipment

Choosing the Correct Size

Select the clamp according to the outside diameter of the hose after the hose has been installed over the barb or fitting. Do not choose a clamp based only on the nominal inside diameter of the tubing, since hose wall thickness and fitting dimensions affect the final assembled diameter.

• 5/8 in. OD clamp – Fits tubing with an assembled outside diameter of approximately 14-16 mm
• 3/4 in. OD clamp – Fits tubing with an assembled outside diameter of approximately 17-20 mm

For the best fit, install the hose onto the intended fitting and measure the outside diameter at the point where the clamp will sit before selecting a clamp size.

How to Use

Slide the appropriate stepless clamp over the hose before installing the fitting. Insert the barbed fitting fully into the tubing, then position the clamp over the barbed section of the fitting.

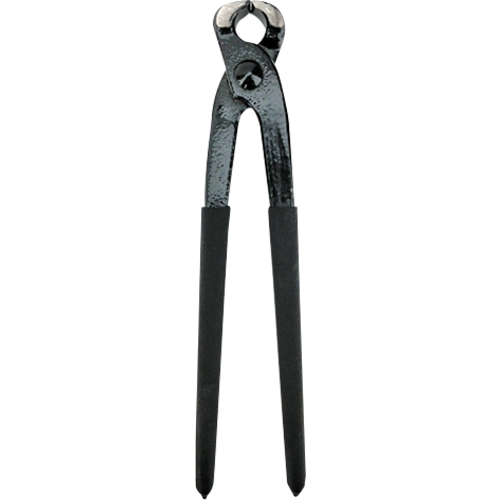

Place the jaws of a Stepless Clamp Pincer Tool squarely over the raised ear of the clamp and squeeze until the ear is fully compressed. Inspect the finished connection to make sure the clamp is centered and evenly seated around the tubing.

Specs

• Manufacturer – KegLand
• Product type – Single-ear stepless hose clamp
• Material – Stainless steel
• Package quantity – 20 clamps
• Available sizes – 5/8 in. OD and 3/4 in. OD
• 5/8 in. OD clamp compatibility – 14-16 mm tubing OD
• 3/4 in. OD clamp compatibility – 17-20 mm tubing OD
• Installation tool – Stepless Clamp Pincer Tool
• Suitable for brewing, draft, beverage, and compatible hose connections

Brew Tips

• Always select the clamp based on the assembled outside diameter of the hose.
• Do not choose clamp size based solely on the nominal hose inside diameter.
• Position the clamp directly over the barbed portion of the fitting.
• Keep the pincer tool centered and square on the clamp ear during installation.
• Compress the clamp evenly for a secure connection.
• Do not reuse a stepless clamp after it has been removed.
• Use a new clamp whenever rebuilding or replacing a hose connection.
• Inspect tubing and fittings periodically for wear, cracking, cuts, or leaks.
